FCS Race Civic kit 96-00 NO WELDING ALL WHEEL DRIVE Wilwood Brake kit AXLES
FCS Race Civic kit 96-00 NO WELDING ALL WHEEL DRIVE Wilwood Brake kit AXLES
Couldn't load pickup availability
Brand: FCS Race
Items Included: Axle
Placement on Vehicle: Rear

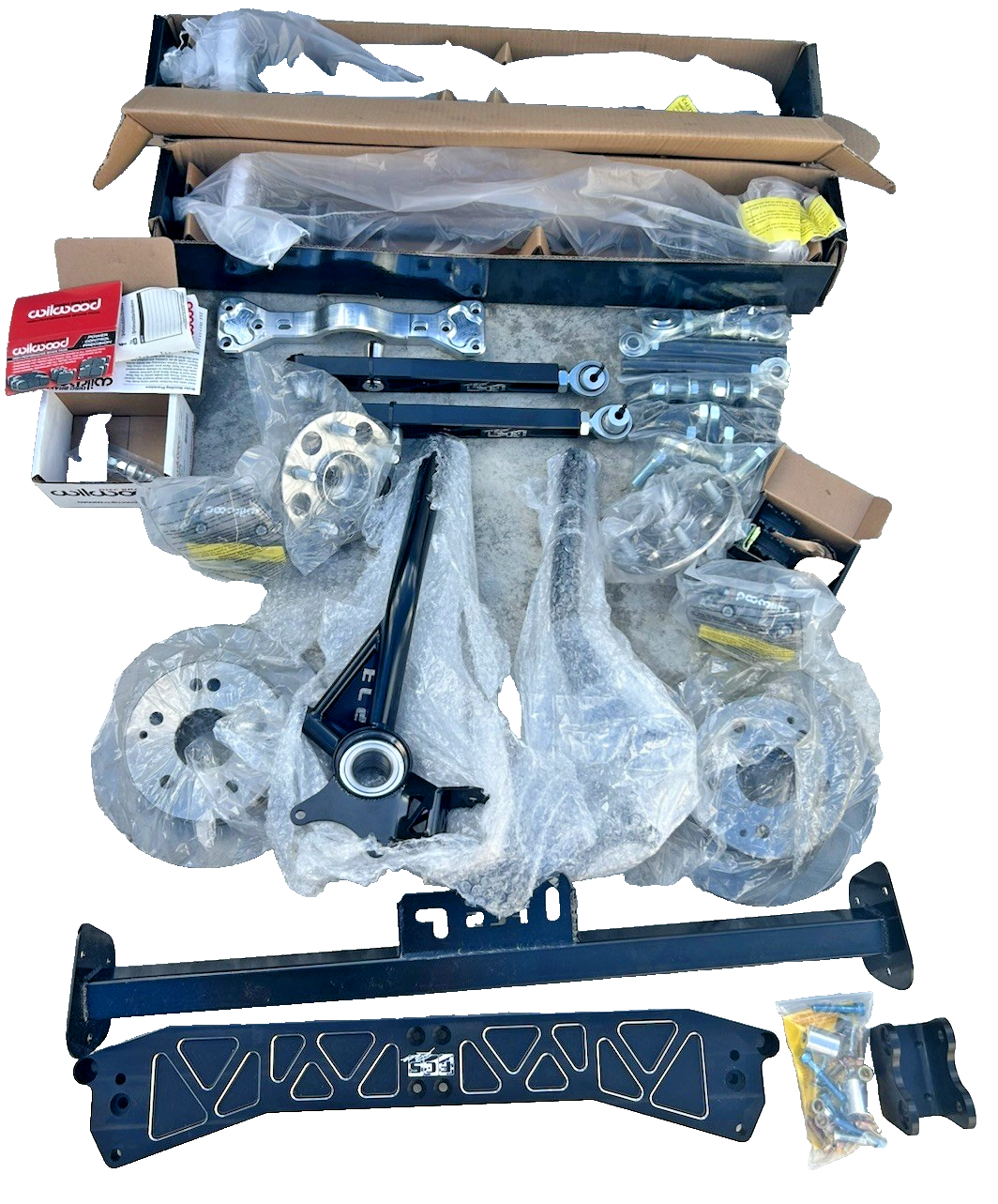

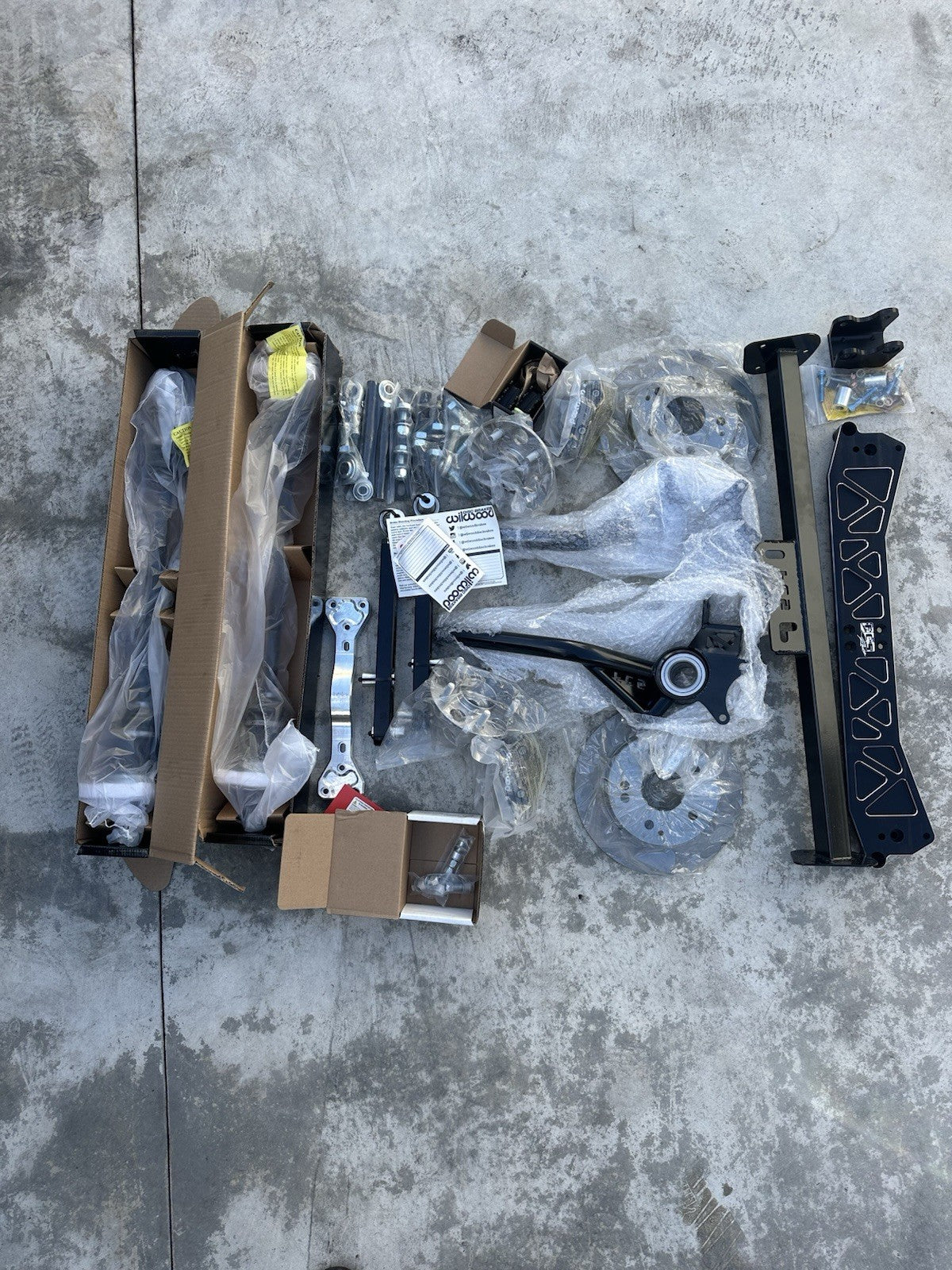

Includes the following:

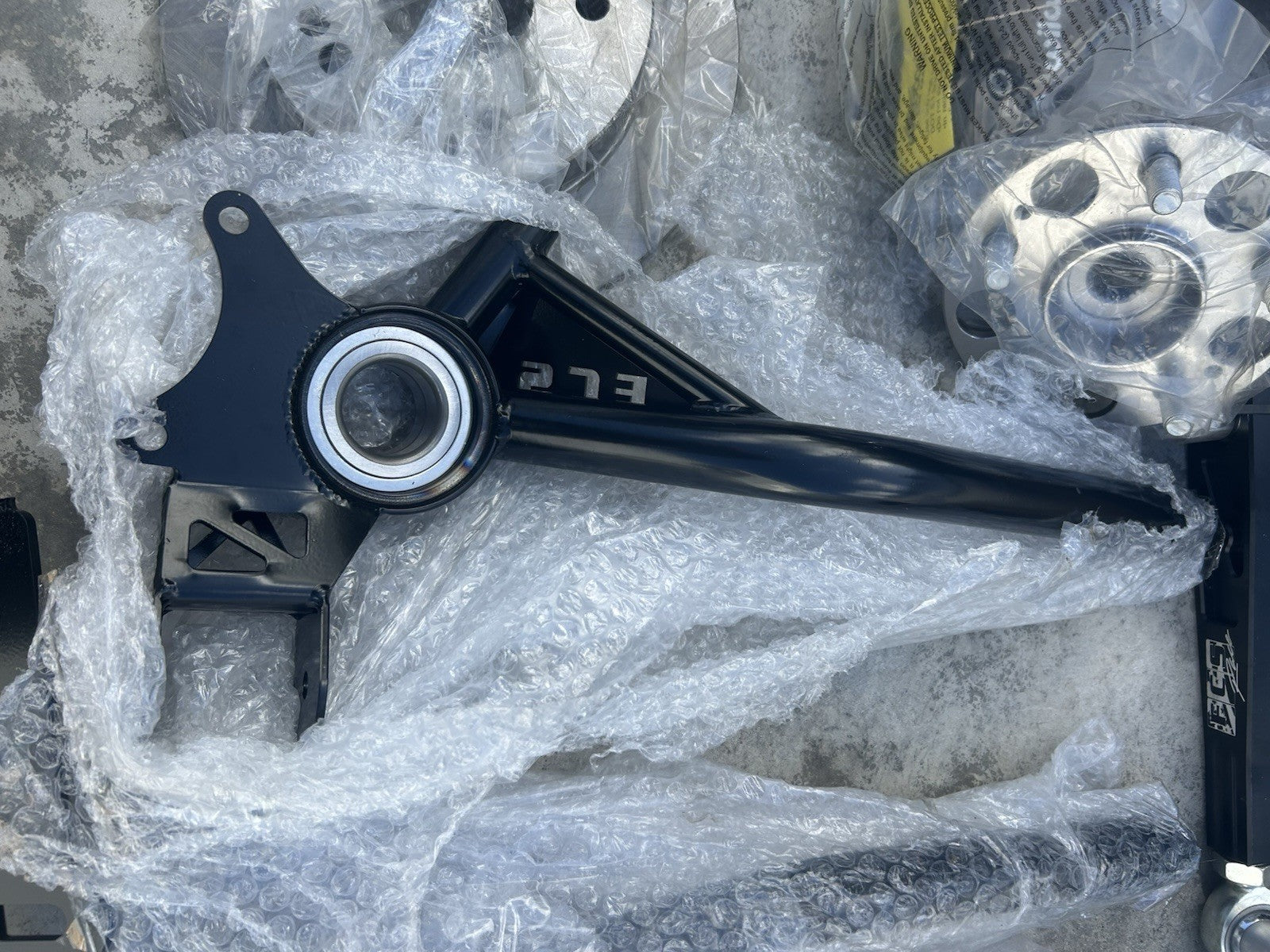

2- rear trailing arms. heat treated and stress tested for off road use only. (All forms of racing does apply ie: drag, road, circuit, time attack, rally, etc. We do not condone highway public use, however that discretion is on the end user :)

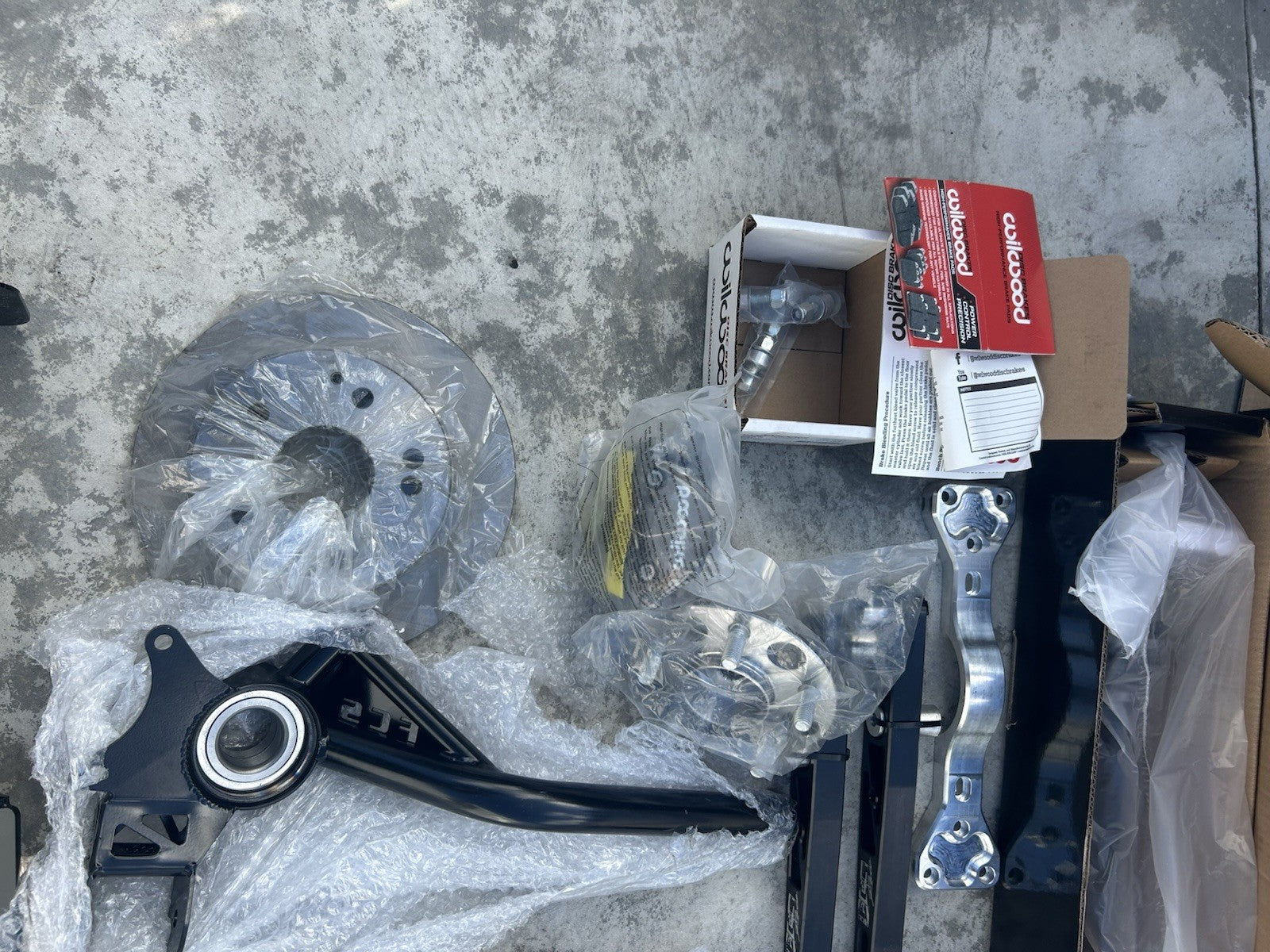

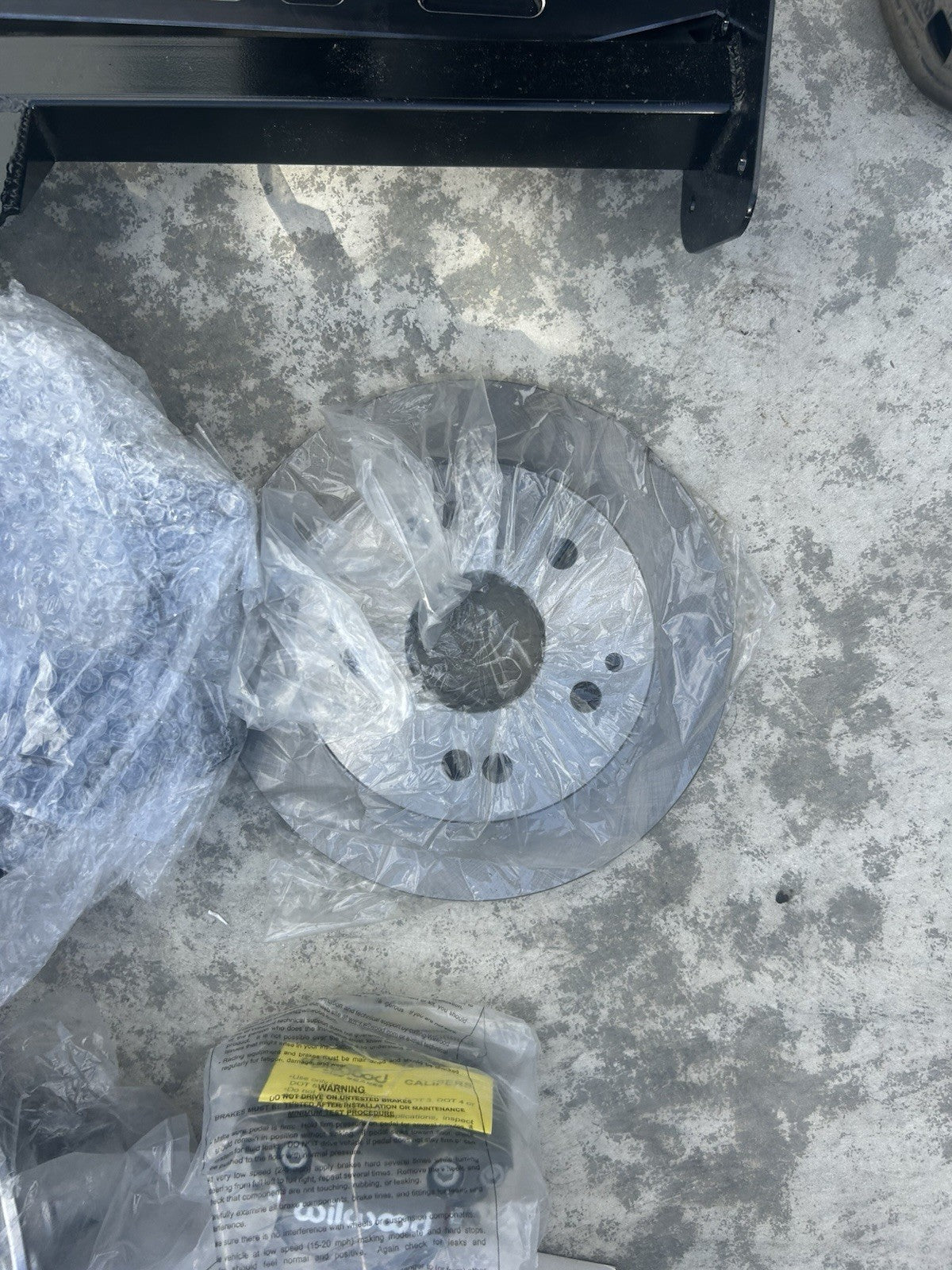

2- Oem heat treated rotors, 2 piston billet Wilwood Dynapro calipers, performance pads, wheels studs, oem hubs in 4/100 or 5-114 lug patterns, wheel bearings, lock clips, axles nuts, etc. complete assembly ready out of the box!
2- camber radius Swedge arms, rod ends, hardware etc.
2- dot approved stainless brake line kit with fittings, clips, and hardware for oem brake line install
2- design pat. adjustable grade 8 toe link

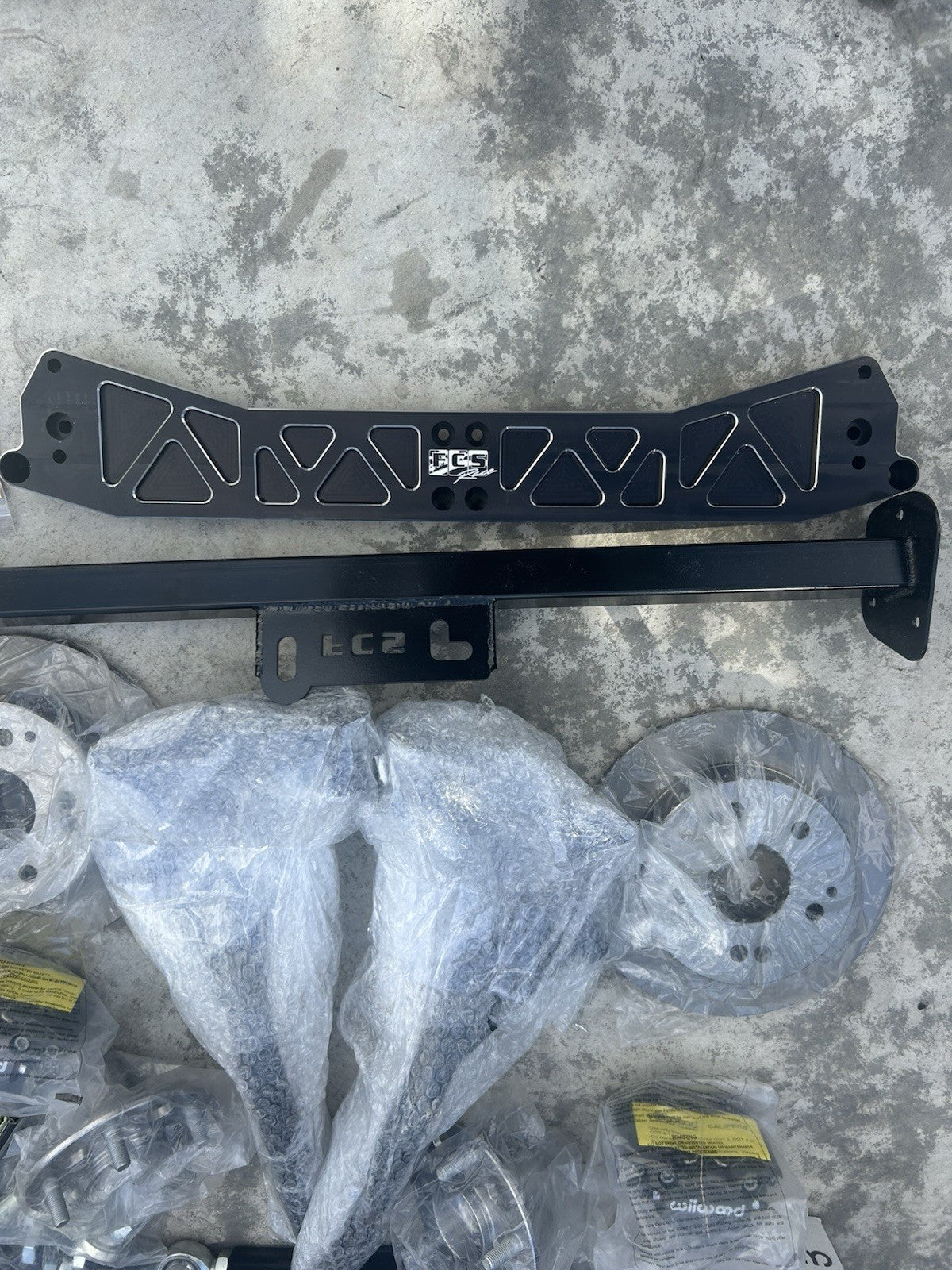

1- Rear 2pc bolt in sub frame. (design patent) no need to completely remove your oem subframe and reduce the integrity of your unibody chassis. a small 4" notch is all is called for. this also allows you to retain the oem structure if you wish to convert back to fwd just keep the cut portion.
this unit will allow both WAGON and CRV/ELEMENT rear differentials and axles in the same kit! no need to chase one or the other and be married to it. you can now interchange and swap when you come across something better!

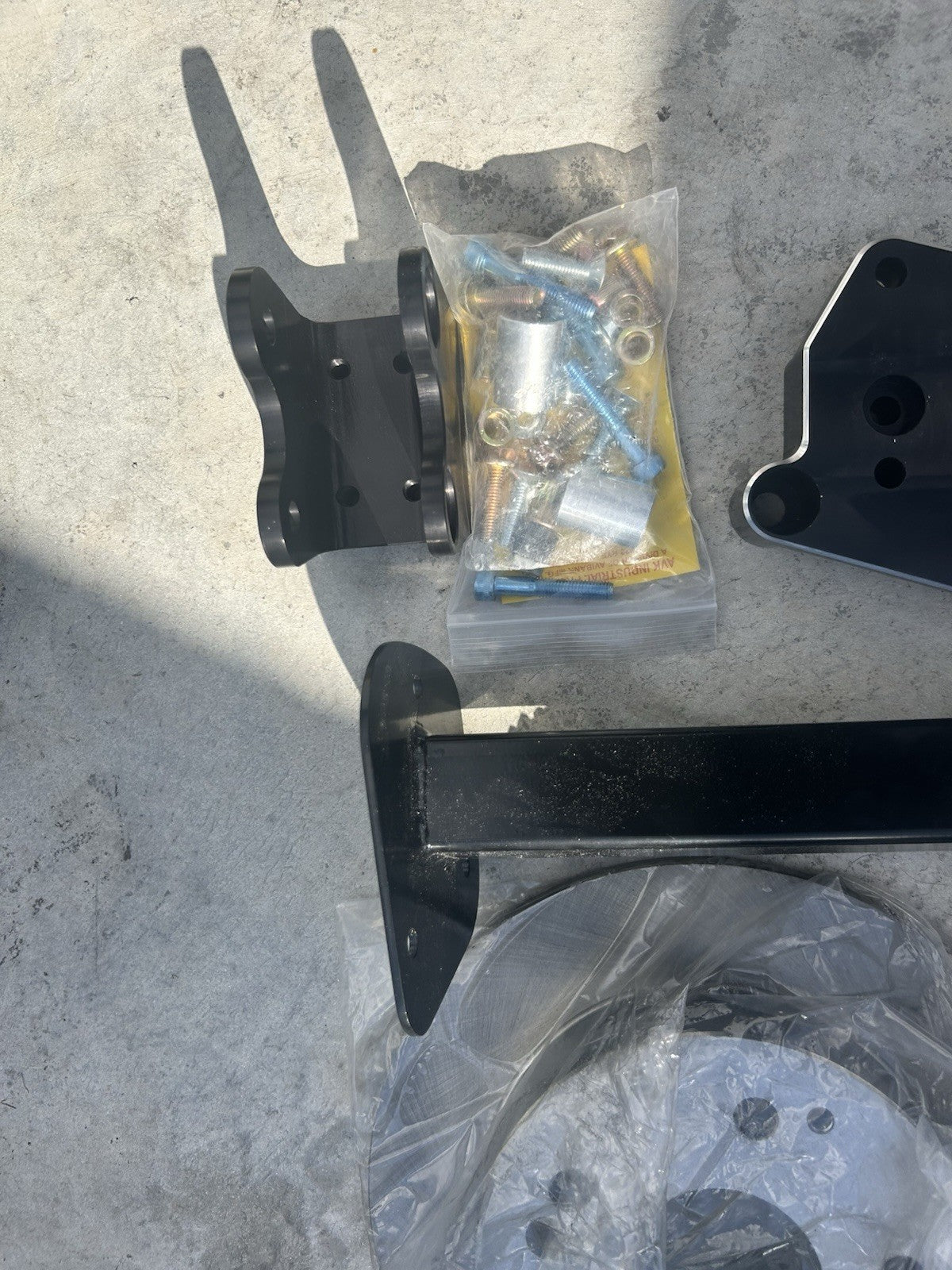

carrier bearing mounting kit for 2 styles of drive shafts. wagovan and crv/pilot/element included (must choose at checkout)
(does not include carrier bearing) mount kit only
(LIMITED TIME ONLY) FREE PAIR OF HD AXLES WHEN PURCHASING OUR KIT!
Options allows you to shorten the axle kit up to 1” of total track for those who wish to tuck wider tires & slicks with the addition of our adjustable lcas!
OR you can simply stay factory, with long axles for OE setup to track your wheels out to the edge of the quarter panels! choice is yours!
TESTED UP TO 1000HP+!
Works with 88-91 WAGON MUST BE USED WITH MATING DIFFERNTIAL
98-01 & 2002-2006 crv element Pilot rear differential and drive shaft.
DONOR PARTS NEEDED TO COMPLETE THIS KIT ;
98-01 HONDA CRV MANUAL 5 SPEED TRANSMISSION, SHIFTER BOX AND CABLES
02-06 HONDA CRV MANUAL 5 SPEED TRANSMISSION, SHIFT BOX AND CABLES (CAN WORK WITH K TUNED SHIFTER ETC)
88-91 CIVIC WAGON 4RT REAR DIFFENTIAL, DRIVESHAFT, AND AXLES
02-06 CRV/PILOT/ELEMENT REAR DIFFERENTIAL, DRIVESHAFT, AND AXLES
