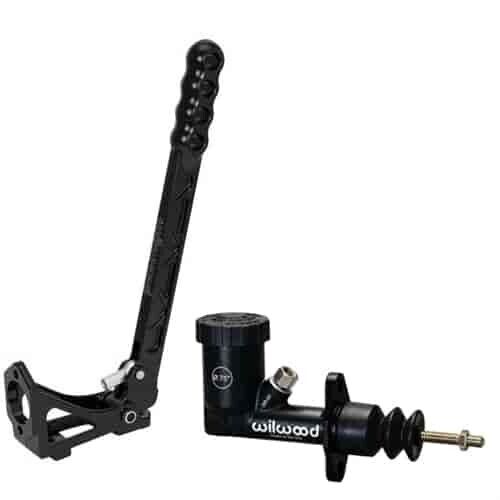

Wilwood Vertical Handbrake Assembly Staging Brake w/ GS Master Cylinder VT,DRIFT
Wilwood Vertical Handbrake Assembly Staging Brake w/ GS Master Cylinder VT,DRIFT
Couldn't load pickup availability

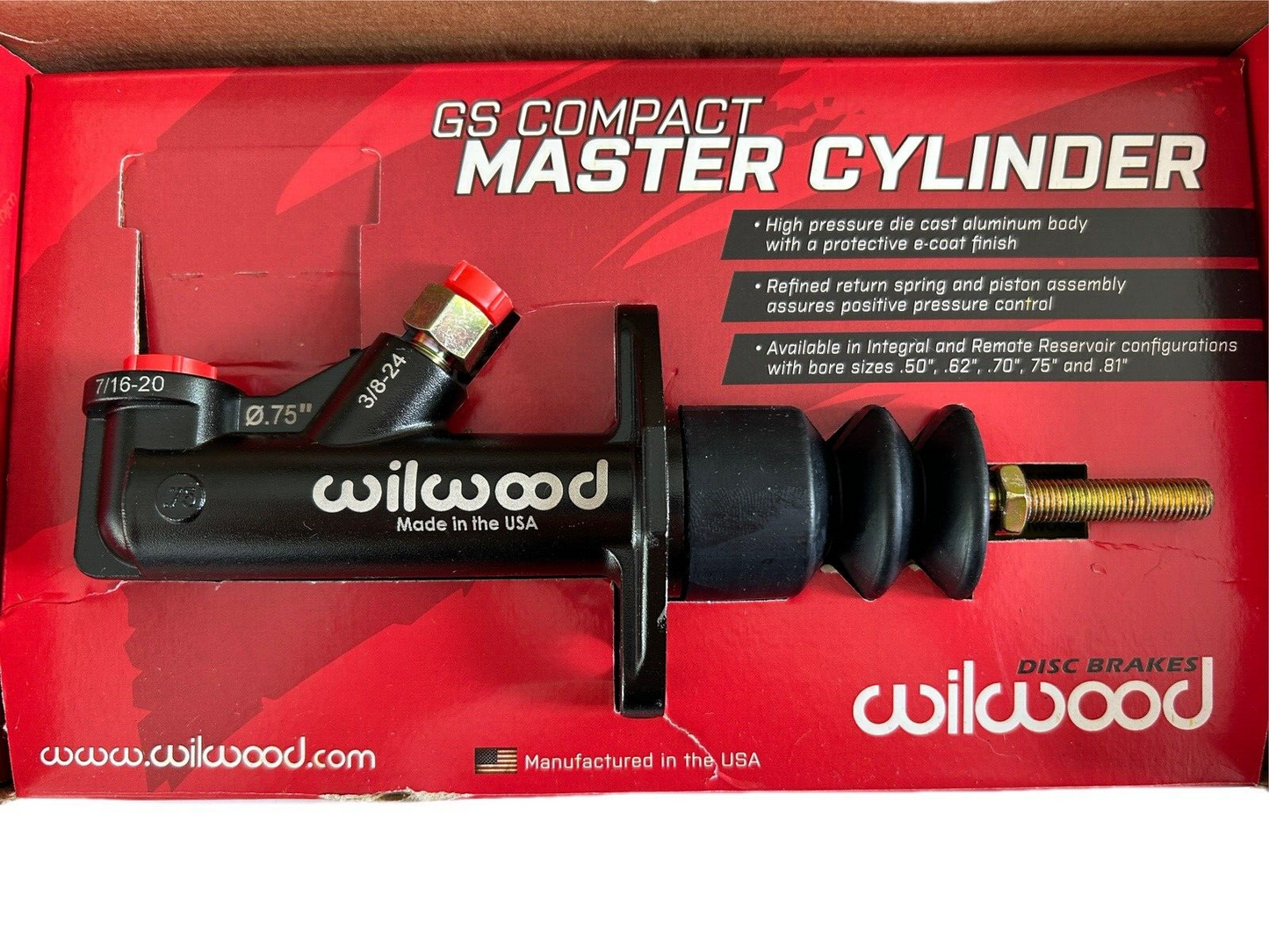

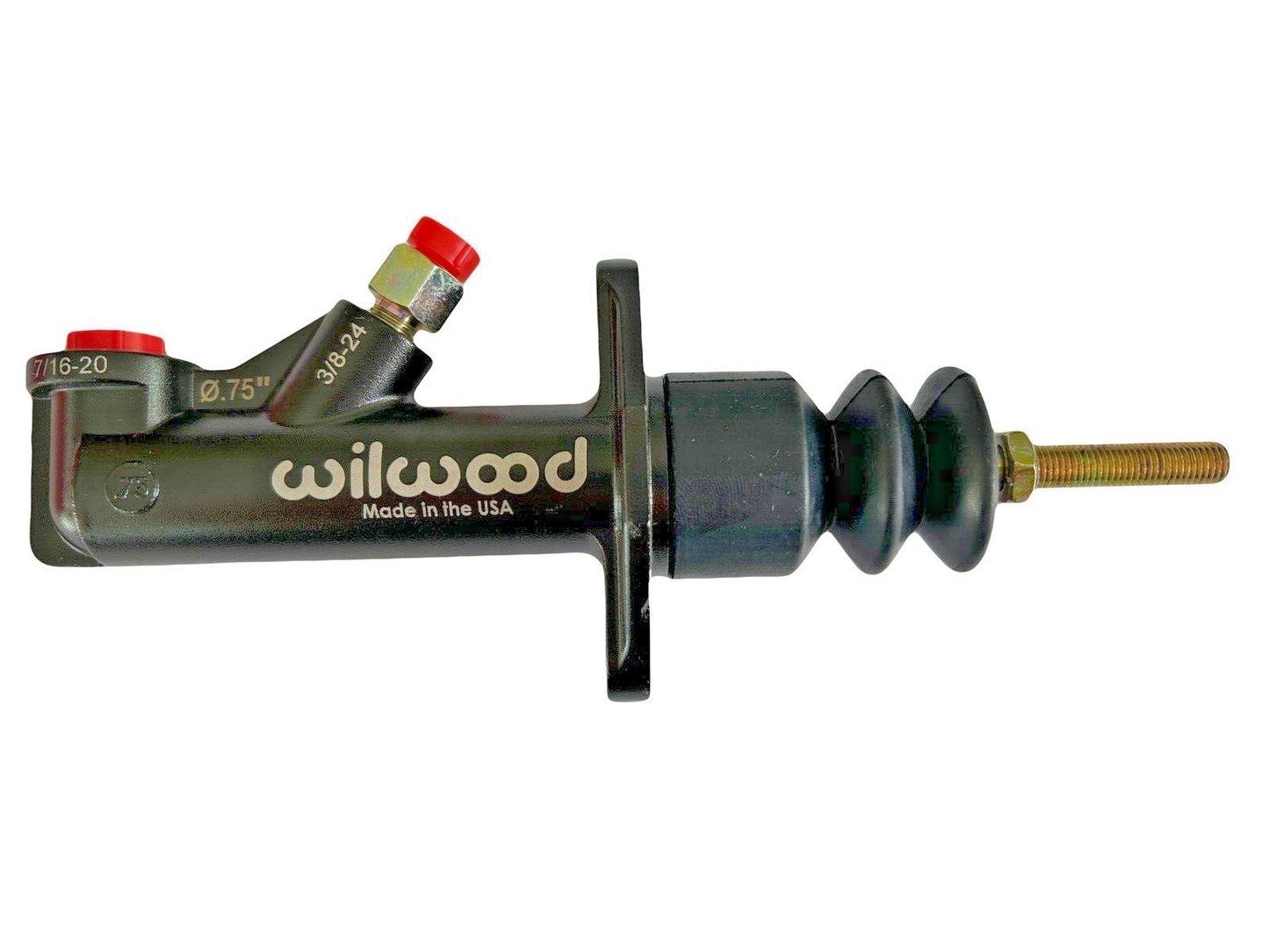

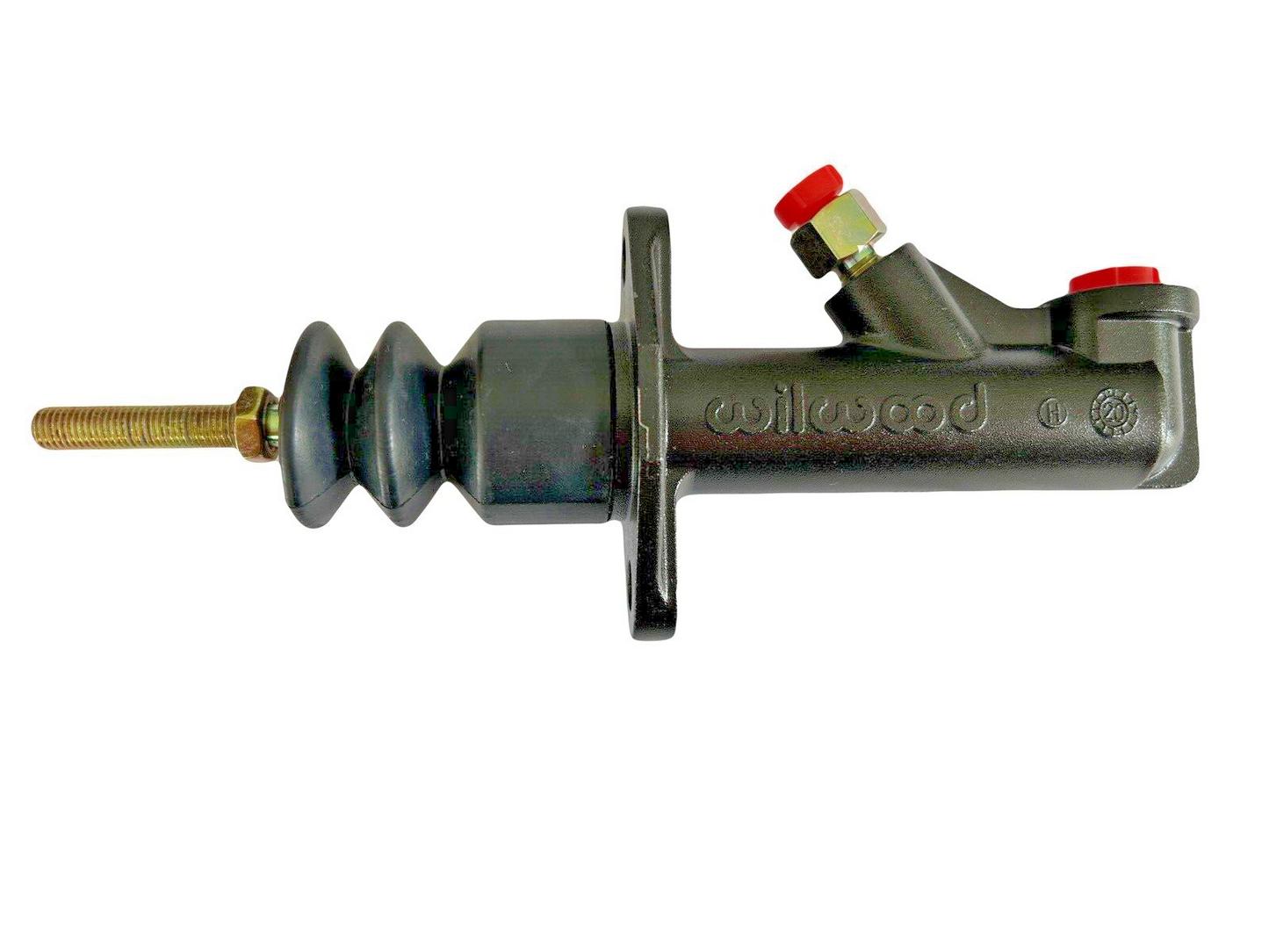

GS Compact Remote Master Cylinder - Product Description
Wilwood’s new GS Compact Remote Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release
| Master Cylinder Dimensions | |
|---|---|
| Bore Size | 3/4" |
| Area (in²) | 0.440 |
| Stroke | 1.25 |
| Volume (cu in) | 0.55 |
| Master Cylinder Description | |
| Type | Single Outlet |
| Outlets | 1 |
| Material | Aluminum |
| Finish | Black E-coat |
| Reservoir | |
| Res Type | Remote |
| Res Size (oz) | |
| Res Size(cu in) | |
| Rate | |
| UPC Number | |
| UPC | 889545074352 |

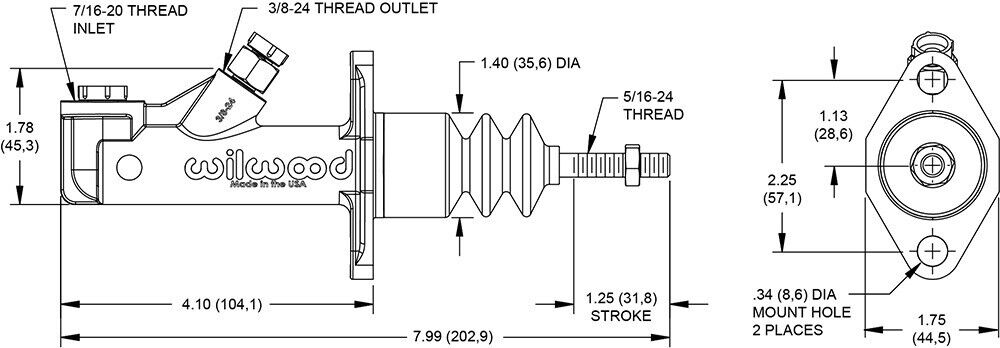

| Additional Dimensions | |
|---|---|
| Overall Length(in) | 7.85" |
| Flange to End Length (in) | 4.10 |
| Inlet Size (in) | 7/16-20 |
| Inlet Fit (in) | |
| Outlet Size 1 (in) | 3/8-24 |
| Outlet Fit 1 (in) | 3/8-24 IF Female |

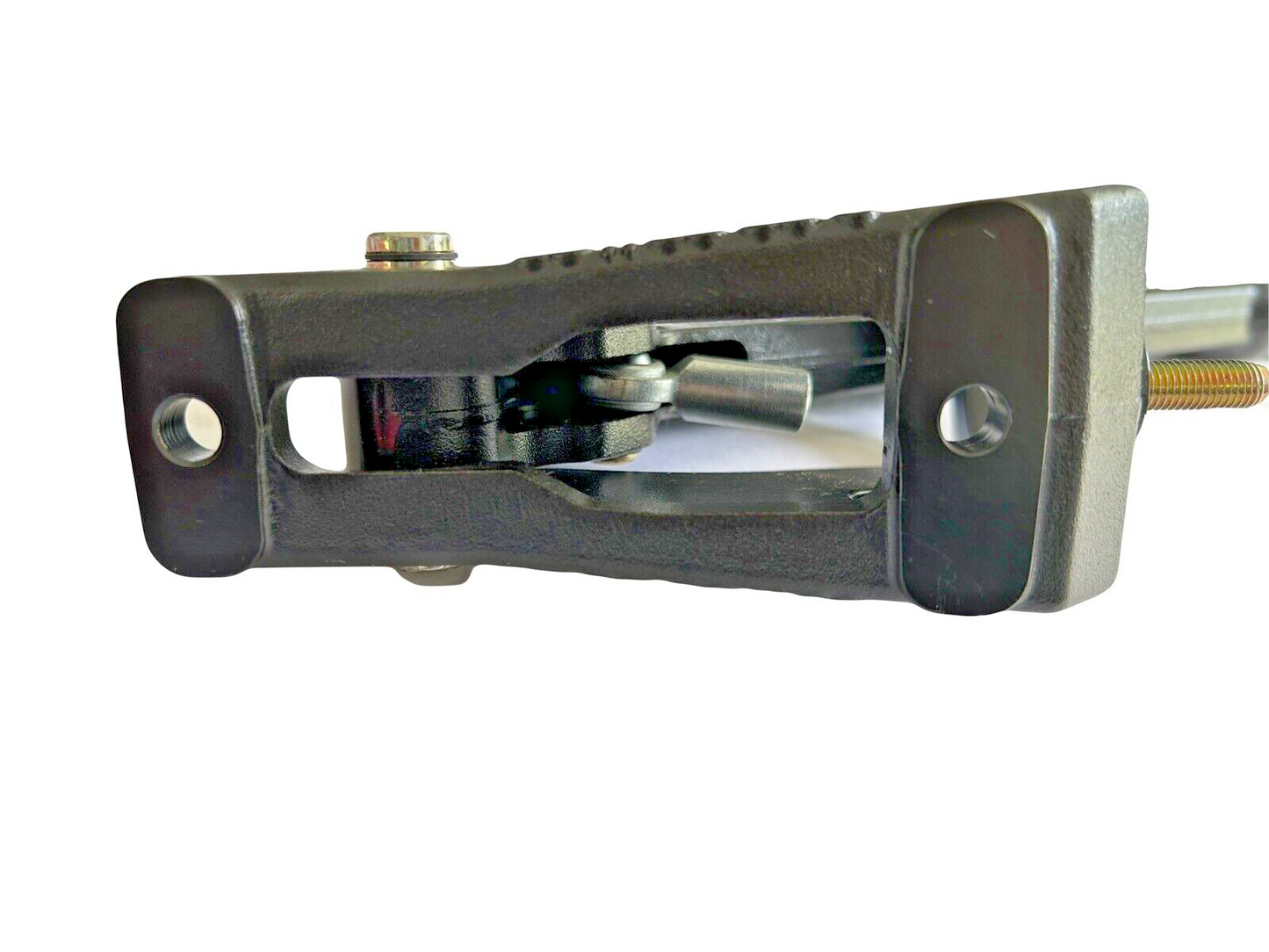

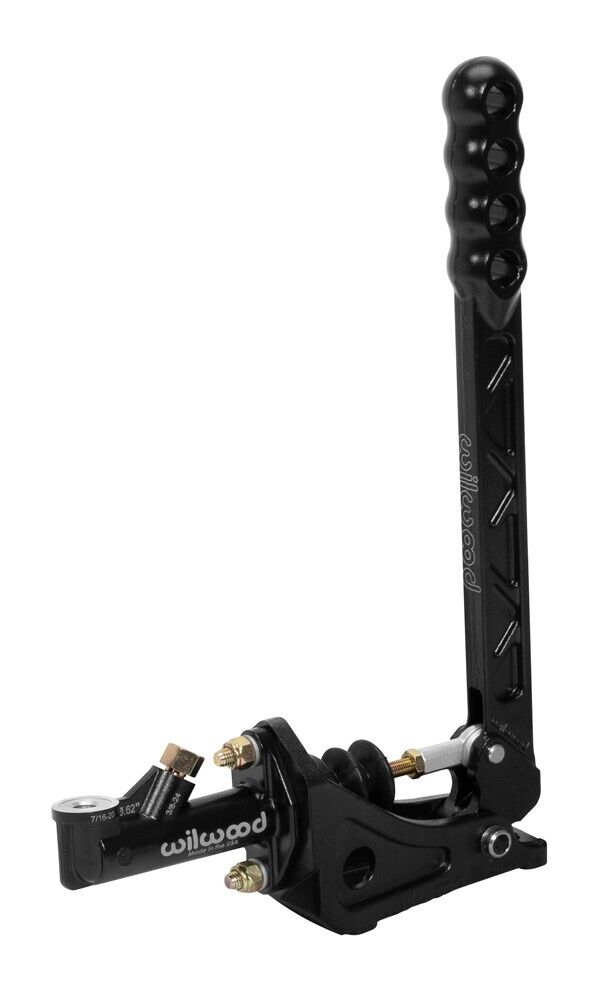

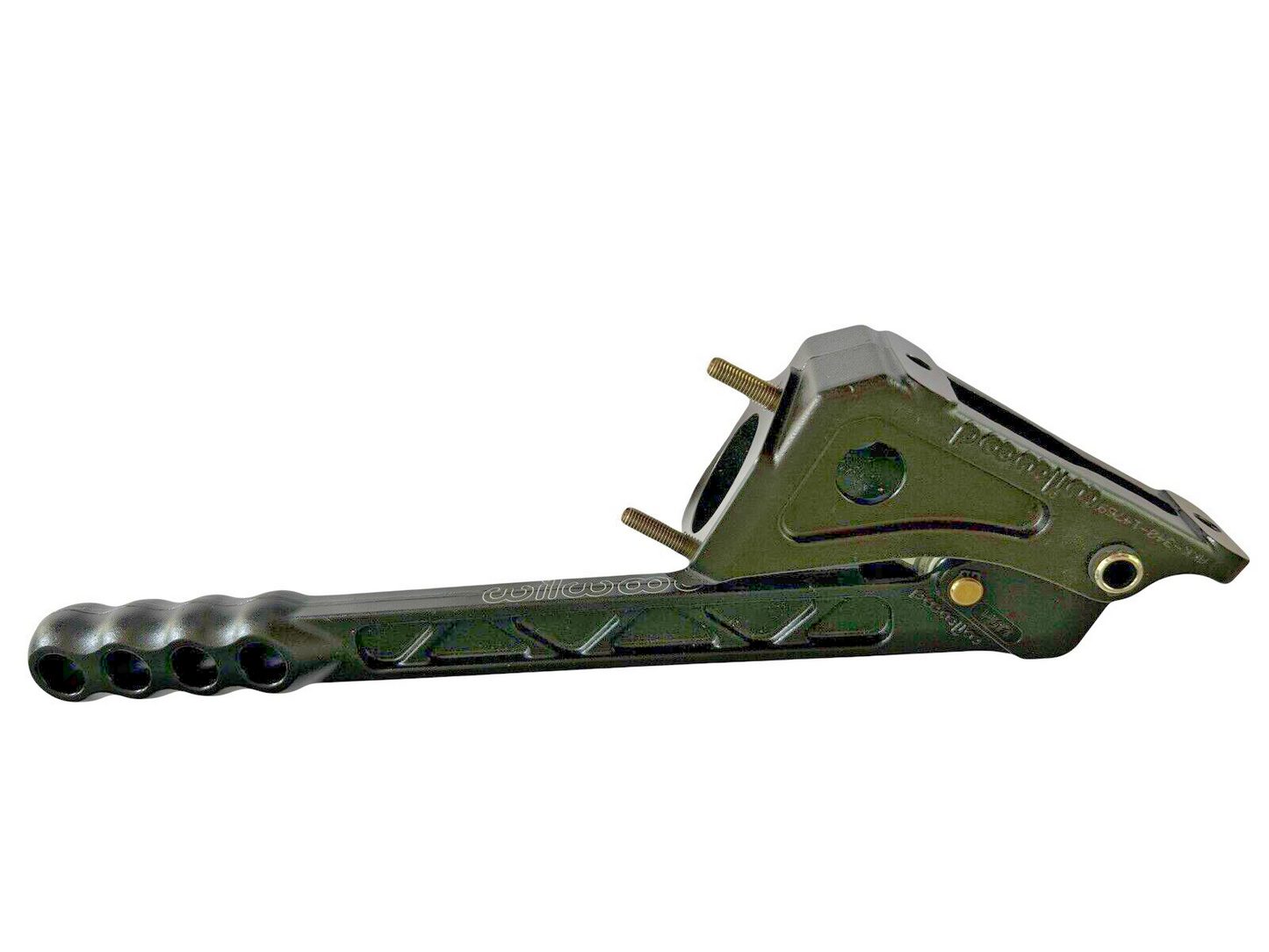

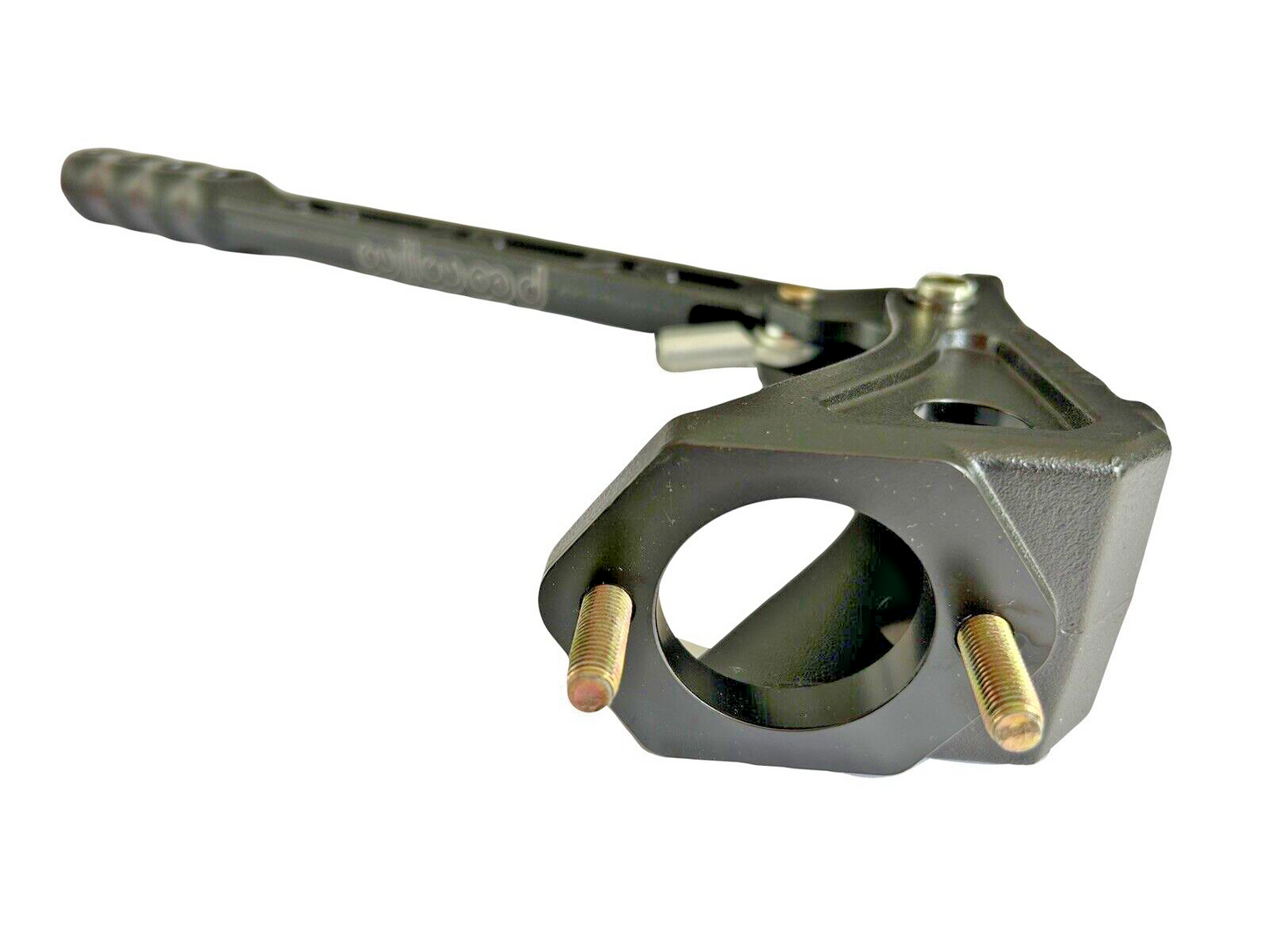

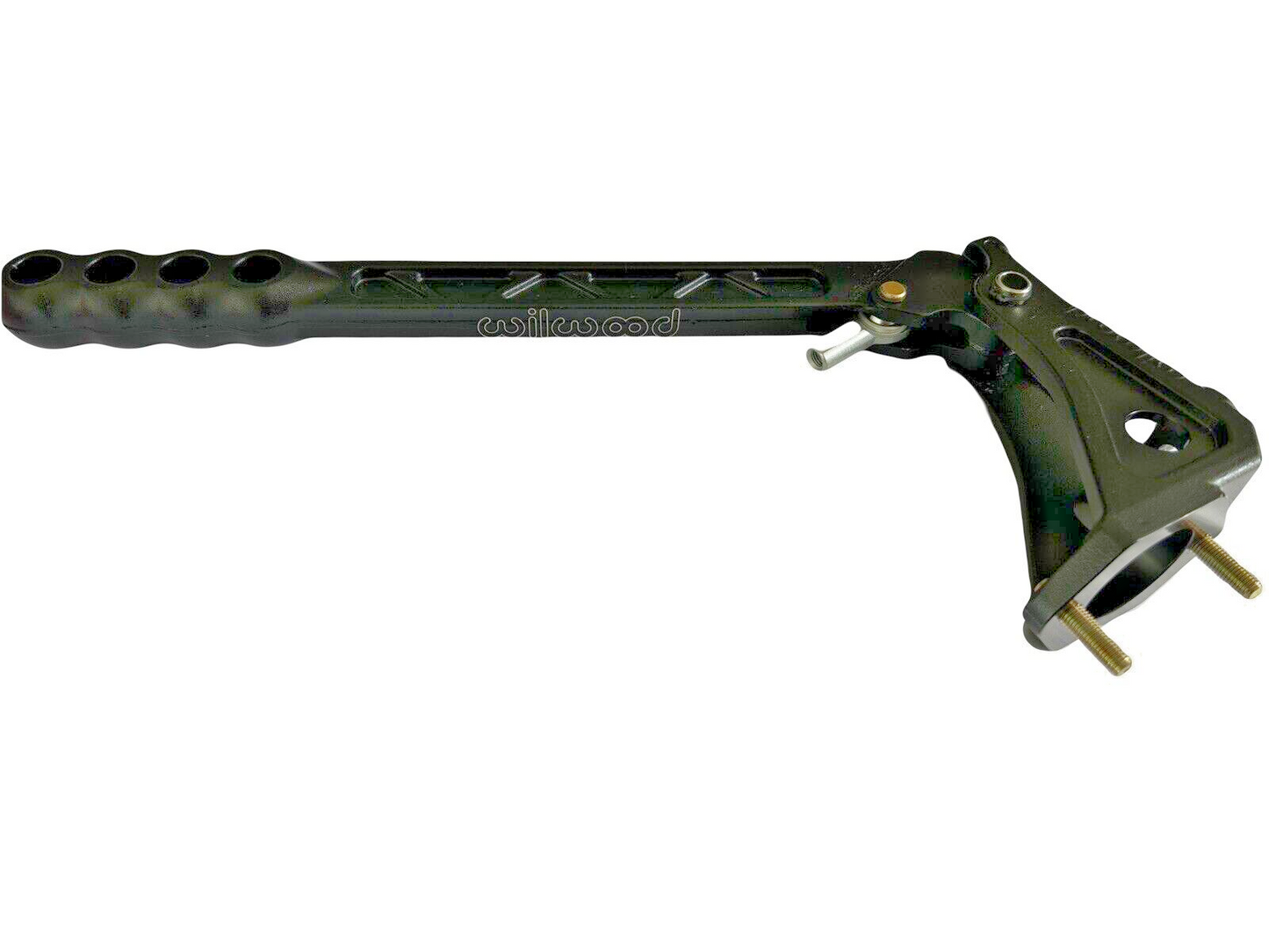

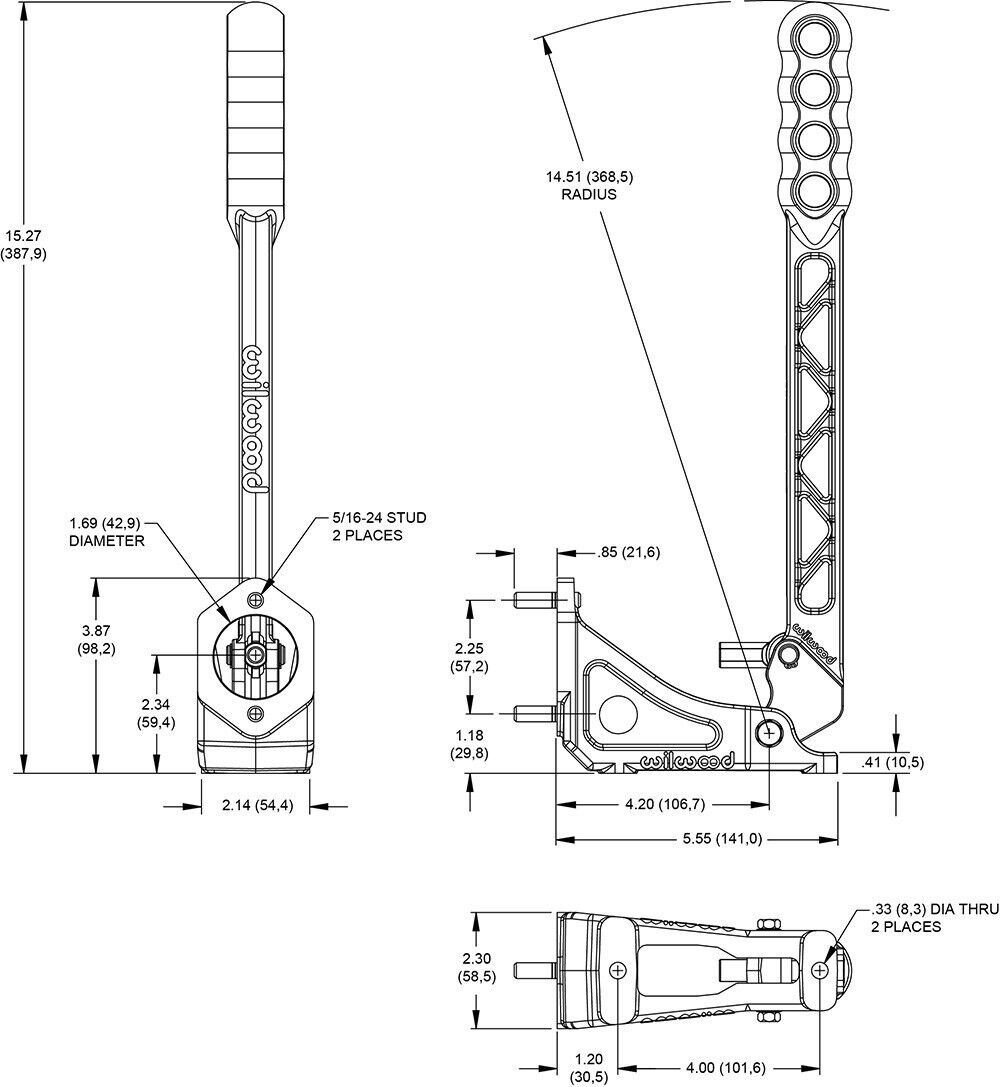

Hand Brake Assemblies - Product Description
Wilwood handbrake lever assemblies provide a lightweight, high-leverage component for drift cars, drag race cars and rally cars or any application where hand-actuation of one or more brake calipers is employed. With a lightweight aluminum forged 11:1 ratio “H” beam lever with ergonomic grip in a choice of vertical or horizontal static lever positioning Accepts any vertical flange master cylinder with 2.25” mount centers. Finished an a durable long lasting e-coat finish for corrosion resistance.
| Pedal Type | |
|---|---|
| Material | Aluminum |
| Finish | Black E-coat |
| Pedal Description | |
| Mount Loc | Floor |
| Mount Facing | Vertical |
| Balance Bar | No |
| Mount Length (in) | 15.30 |
| Pedal Ratio & Length | |
| Pedal 1 Ratio | 11.0 to 1 |
| Pedal 2 Ratio | |
| Pedal 1 Length (in) | 14.51 |
| Pedal 2 Length (in) | |
| UPC Number | |
| UPC | 889545083422 |
| Additional Pedal Dimensions | |
|---|---|
| Mount Length (in) | 15.30 |
| Pedal 1 Length (in) | 14.51 |
